How do I connect to LBMX using an AS2 Connection?

Steven Baird
  • Updated
Follow

Overview

AS2 (Applicability Statement 2) is a method of document transmission which allows LBMX clients to transport structured EDI data securely and reliably over the Internet. Security is achieved by using digital certificates and encryption.

Customers should already have access to an AS2 application or use the services of a 3rd party provider.



LBMX AS2 Connection Information

This is the high level details needed to connect to LBMX via AS2

LBMX AS2 Profile

   Server Brand (e.g., Cyclone, IPNET, etc.):   nSoftware EDI
   Transport Type: (HTTP/HTTPS):   HTTP
 LBMX Production AS2 Name: LBMXPRODAS2
   LBMX Test AS2 Name:   LBMXTESTAS2
   Inbound URL:   http://as2.lbmx.com:4080/as2
   Inbound Port:   4080
   Outbound Port Range:   4080
  Encryption Settings
   Sign Documents:   Yes
   Request MDN:   Yes
   Signed MDN:   Yes
   Algorithm for signed MDNs / Message Digest:   SHA2
   Synchronous or Asynchronous MDN:   Synchronous
   Encryption:   TripleDES

   AS2 outbound IP address*:

 64.130.213.70



LBMX AS2 Certificate

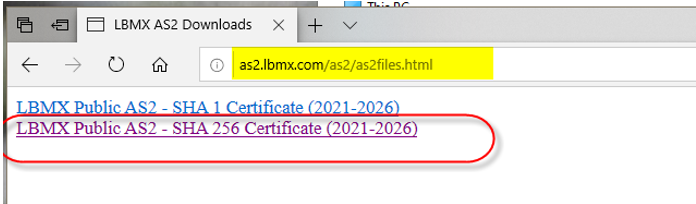

Please download the LBMX AS2 certificates ( SHA1 or SHA2) from the URL below:

http://as2.lbmx.com/as2/as2files.html

  1. Copy the URL link into your browser to open up the download site
  2. Single click on the link
  3. Save the file and install/activate the certificate on your AS2 application



Configuration of Retry Attempts

If an AS2 connection attempt is unsuccessful, partner systems may be configured to automatically retry transmissions at 10-minute intervals. There is no retry limit enforced by LBMX.



*Previous AS2 outbound IP address: 64.130.215.103 (retired September 26, 2026). Please ensure your allowlist has been updated to the current IP listed above.

Support

If you have any questions about working with AS2, please contact LBMX at support@lbmx.com.
